Description

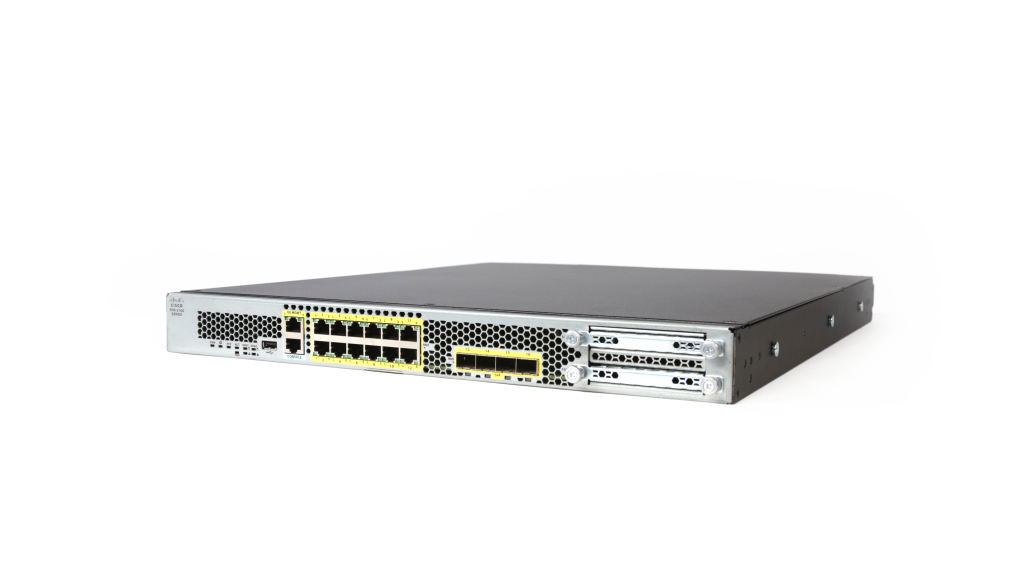

Cisco Refresh Firepower 2120 ASA Security Appliance, 1U Rackmounted
| Product Description | Cisco FirePOWER 2120 ASA – security appliance |
| Device Type | Security appliance |
| Form Factor | Rack-mountable – 1U |
| Hard Drive | 100 GB x 1 |
| Performance | Firewall throughput:6 Gbps ¦IPSec VPN throughput (1024B TCP w/Fastpath):1 Gbps ¦Multiprotocol firewall throughput:3 Gbps ¦IPsec VPN throughput (450B UDP L2L test):700 Mbps |
| Capacity | Virtual interfaces (VLANs):600 ¦Concurrent firewall connections:1500000 ¦VPN peers:3500 ¦Security contexts:2 (maximum 25) ¦New connections per second:28000 |
| Included Accessories | Grounding kit,mounting screws,2 rack mount brackets,console cable PC terminal adapter,2 x cable management brackets |
| Power | AC 100 – 240 V (50 – 60 Hz) |
| Dimensions (WxDxH) | 42.9 cm x 50.2 cm x 4.4 cm |
| Weight | 7.3 kg |
| Manufacturer Warranty | 90 days warranty |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 42.9 cm |
| Depth | 50.2 cm |
| Height | 4.4 cm |
| Weight | 7.3 kg |
| Hard Drive | SSD 100 GB x 1 |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Performance | Firewall throughput:6 Gbps IPSec VPN throughput (1024B TCP w/Fastpath):1 Gbps Multiprotocol firewall throughput:3 Gbps IPsec VPN throughput (450B UDP L2L test):700 Mbps |
| Capacity | Virtual interfaces (VLANs):600 Concurrent firewall connections:1500000 VPN peers:3500 Security contexts:2 (maximum 25) New connections per second:28000 |
| Status Indicators | Power,system,fan,Internet,SSD activity |
| Features | VLAN support,auto-uplink (auto MDI/MDI-X),URL filtering,DDos attack prevention,clustering technology,4 fans,Application Visibility and Control (AVC),auto duplex mode |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 12 x 1000Base-T – RJ-45 4 x 1000Base-X 1 x 1000Base-T (management) – RJ-45 1 x serial – RJ-45 1 x USB 2.0 – Type A |
